Mitsubishi Electric

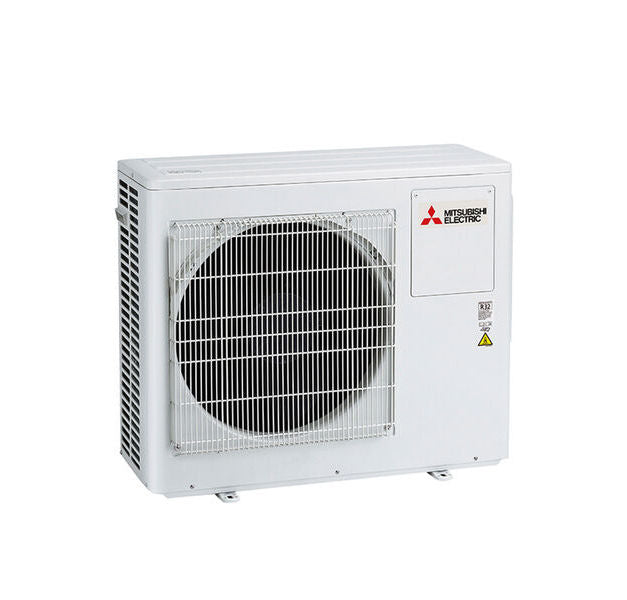

Mitsubishi Electric 5.4kW Multi Head Outdoor Unit Only MXZ-3F54VGD-A1
Regular price
$2,313.00 AUD
Regular price
Sale price
$2,313.00 AUD
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Overview
Mitsubishi Electric 5.4kW Multi Head Outdoor Unit MXZ-3F54VGD-A1 - Reverse Cycle
MITSUBISHI ELECTRIC MXZ-3F54VGD-A1 5.4kW Multi Head System Outdoor Only
2 - 3 Port Multi R32 Outdoor
5.4 kW Cooling
7.0 kW Heating
Mitsubishi Electric Multi Head Brochure
Specifications
| Model Name | MXZ-3F54VGD-A1 | |
|---|---|---|
| Type | Inverter | |
| Refrigerant | R32 | |
| Cooling | ||
| Capacity (Min - Rated - Max) | kW | 2.9 - 5.4 - 6.8 |
| Total Input (Rated) | kW | 1.25 |
| AEER/EER (Indoor + Outdoor) | 4.26 / 4.32 | |
| Sound Pressure Levels - | ||
| Outdoor at 1m | dB(A) | 60 |
| Heating | ||
| Capacity (Min - Rated - Max) | kW | 2.6 -7.0 - 9.0 |
| Total Input (Rated) | kW | 1.43 |
| ACOP/COP (Indoor + Outdoor) | 4.84 / 4.90 | |
| Sound Pressure Levels | ||
| Outdoor at 1m | dB(A) | 65 |
| Outdoor - Dimensions (HxWxD) | mm | 710 x 840 x 330 |
| Weight - Outdoor | kg | 58 |
| Electrical Supply | 230 volt/ Single Phase/ 50 Hertz - Outdoor Power Supply | |
| Breaker Size | A | 25 |
| Piping - max total length | m | 50 |
| max individual circuit | m | 25 |
| max height | m | 15/10* |
| Guaranteed Operating Range (°C) | Cooling | -10 ~ +46 |
| Heating | -15 ~ +24 | |
